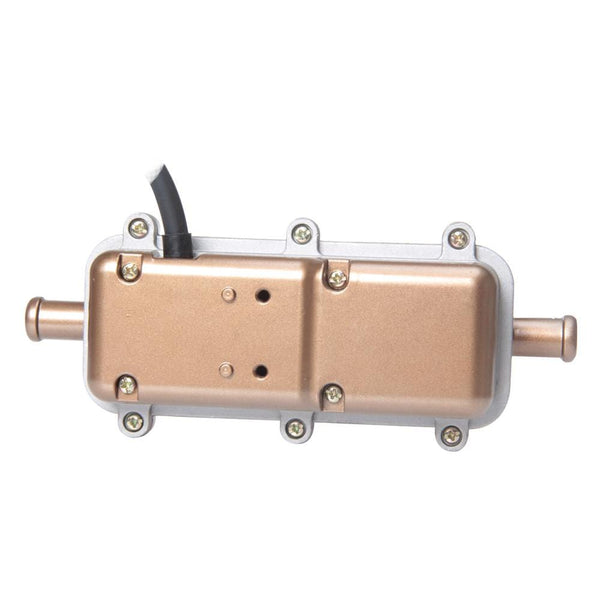

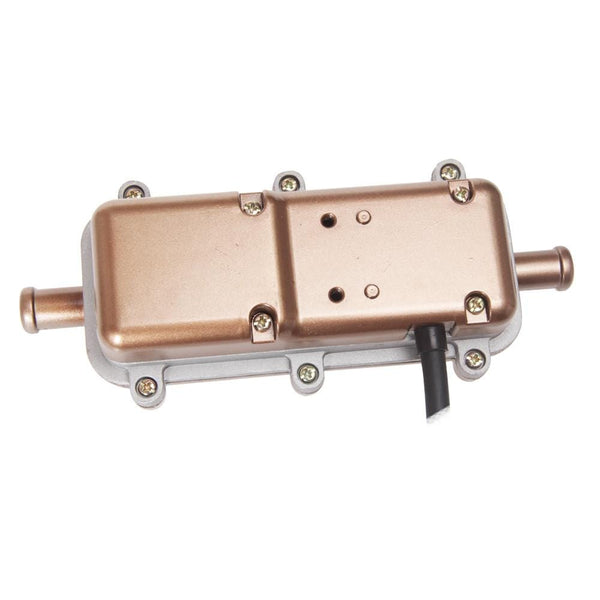

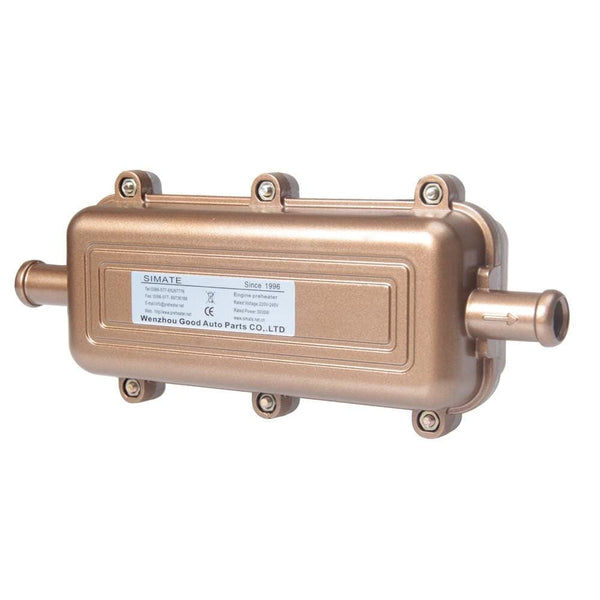

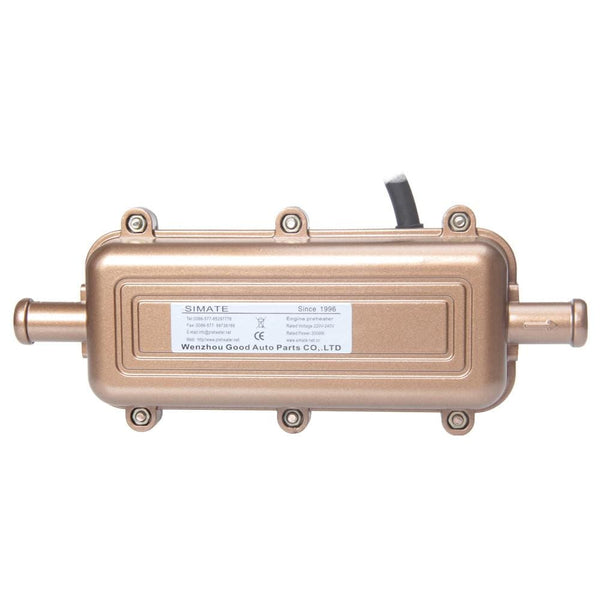

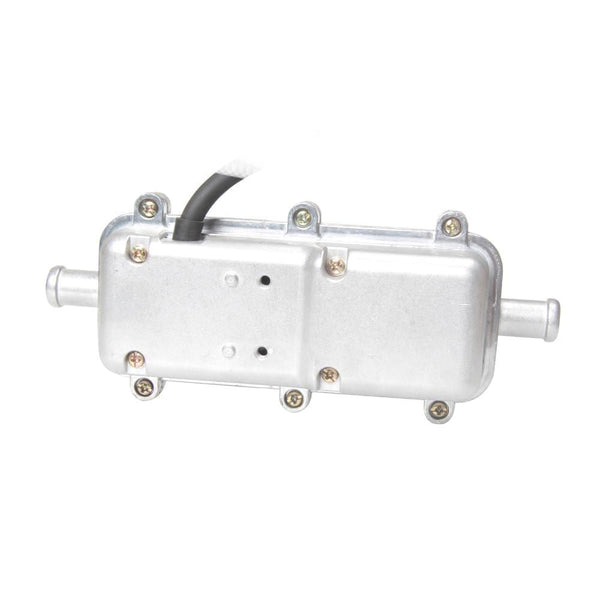

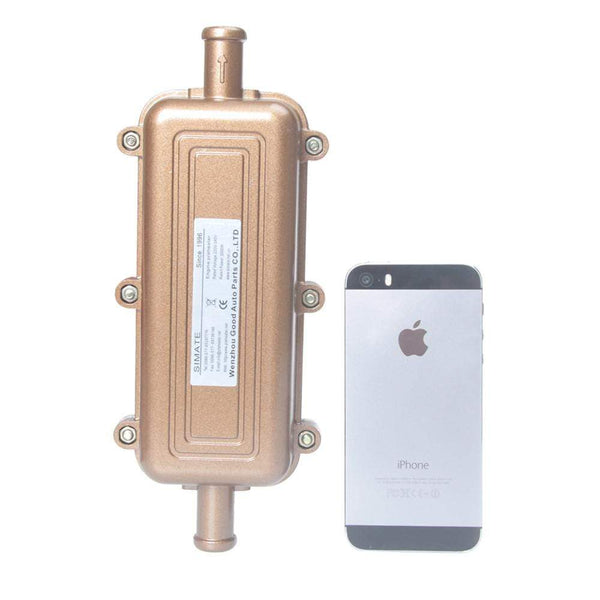

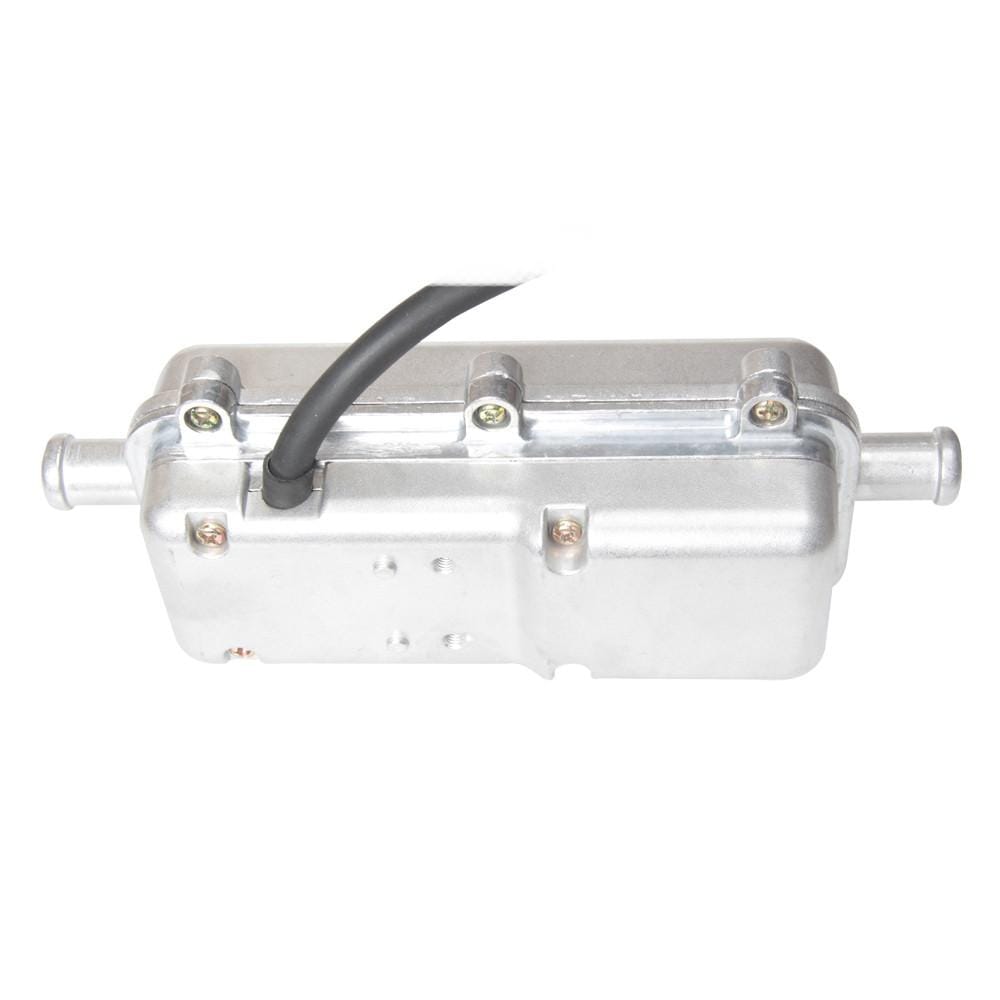

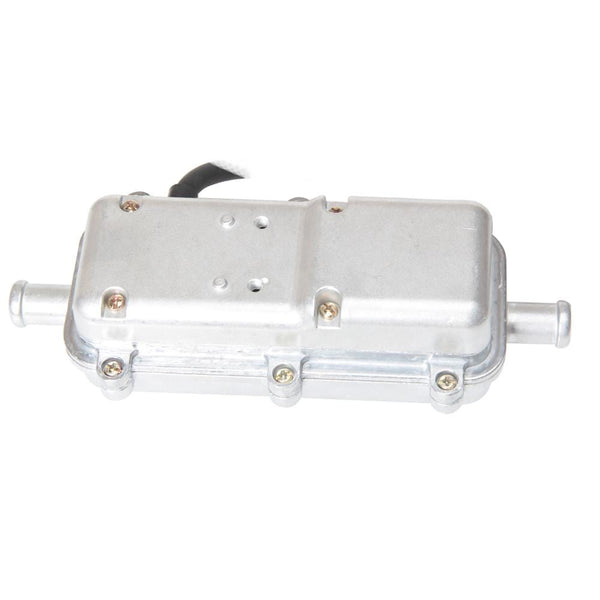

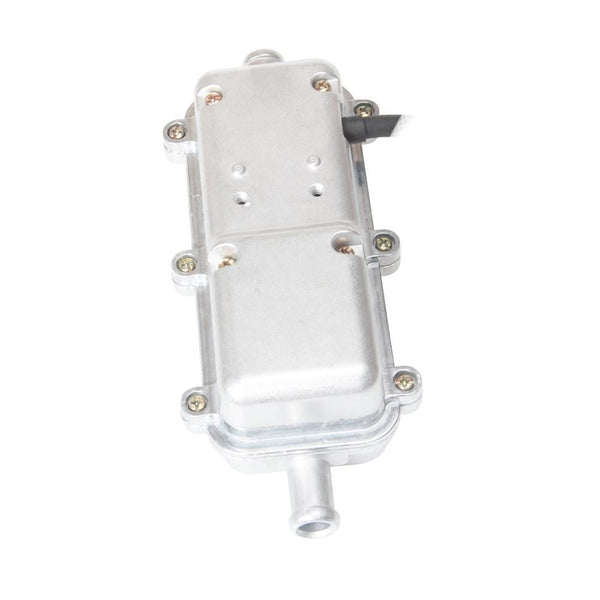

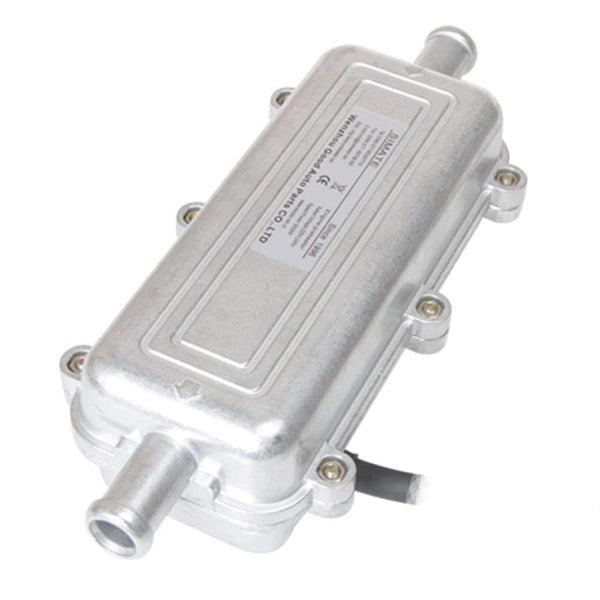

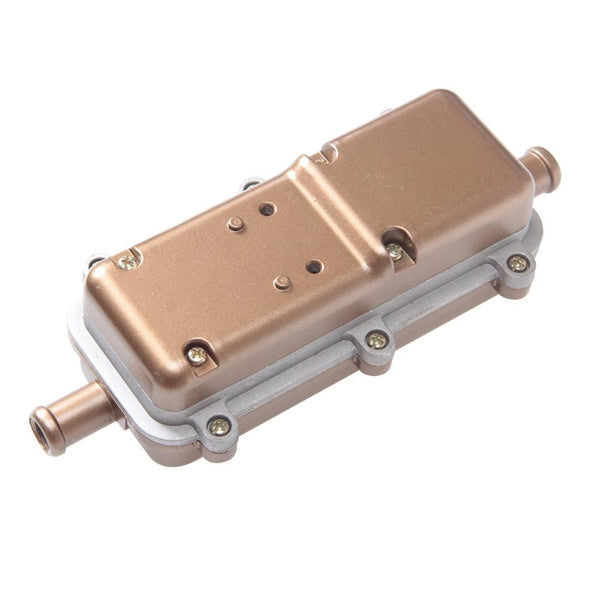

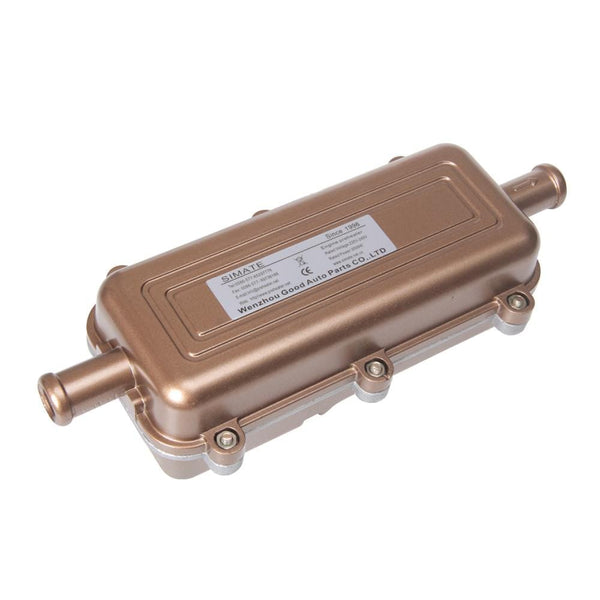

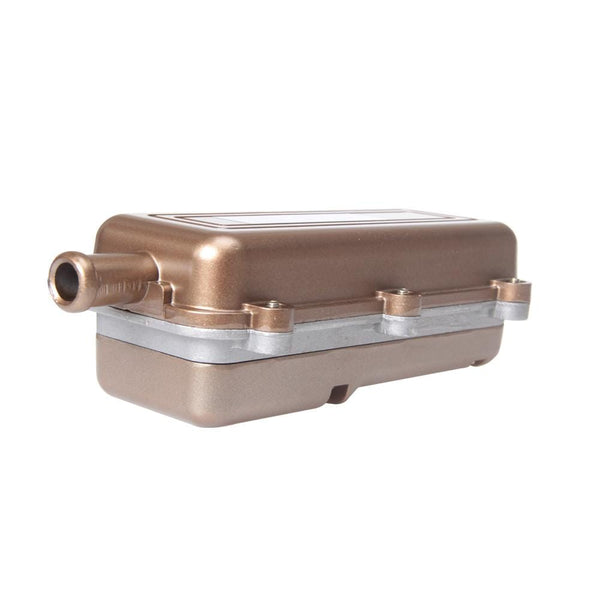

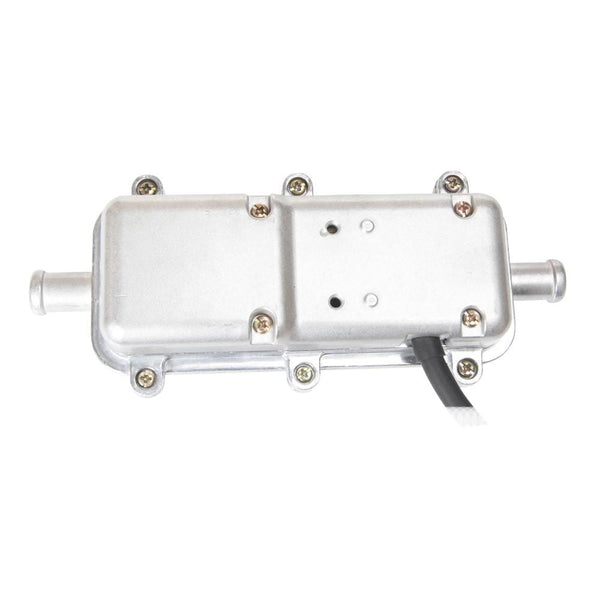

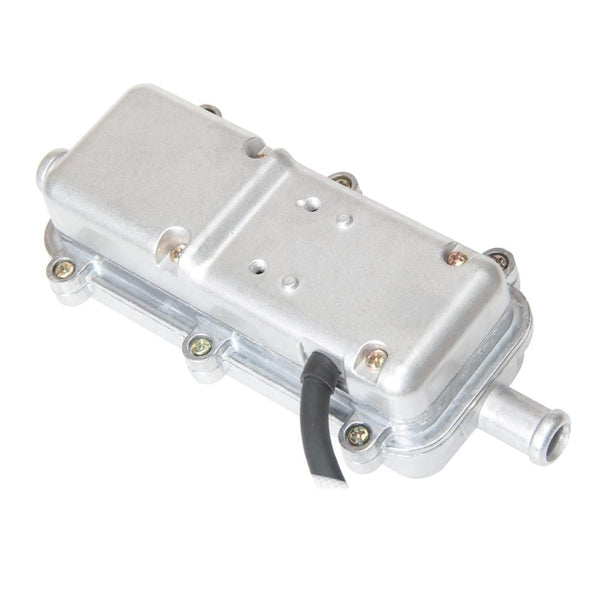

VVKB Car Heater With the Pump S-8005 110V/230V Engine Heater
43 in stock
Benefits of Vvkb Engine Block Heater Titan-P4
- Optimized Water Port Design: The Titan-P4 engine heater features uniquely positioned inlet and outlet water ports, providing enhanced compatibility with various vehicle systems, ensuring an even more efficient heating flow for engines.
- Universal Fit for Heavy Vehicles: Designed to cater to tractors, large trucks, off-road vehicles, and various engineering machinery, the Titan-P4 offers a versatile solution for any heavy-duty vehicle needing reliable engine preheating.
- Robust Heating Capability: With power options ranging from 1000W to 2500W, Titan-P4 heats up your engine quickly, ensuring immediate readiness even in the coldest temperatures.
- Integrated Water Pump: The built-in water pump promotes a consistent heat distribution throughout the engine, improving performance and extending the life of your engine.
- Durable and Reliable: The Titan-P4 features a durable casing made from high-quality aluminum alloy, designed to withstand harsh conditions. Its aluminum die-cast heating elements are reliable, ensuring your investment is well-protected.
Data of Vvkb Engine Block Heater Titan-P4
| Rated Voltage | 110V/230V |
| Rated Power | 1000W/1500W/2000W/2500W |
| Rated Frequency | 60Hz/50Hz |
| Weight | 2.6 lbs (1.2 kg) |
| Dimension | 222mm X 65mm X 90mm (8.7” X 2.6” X 3.5”) |
| Interface Diameter | 5/8" (16mm) |
| With Built-in Pump | Yes |
| Pump Type | Magnetic Pump |
| Pump Life | 5000hr |
| Pump Flow | 900L/Hr |
| Built-in Thermostat | Two thermostats 45℃ - 65℃(113℉ - 149℉) |
| Waterproof Rating | IP X4 |
| Heating Tube Material and Process | Stainless steel, aluminum die-casting |
| Heating Tube Life | 8000hr |
| Shell Material | Aluminum alloy die-casting |
| Shell Treatment Process | Plastic painting and laser engraving |
| Certification | TUV, CE, RoHS, FCC |
| Installation Method | Connected in series or parallel to coolant hoses |
| Warranty | One year |
Engine Block Heater Titan-P4 Introduction

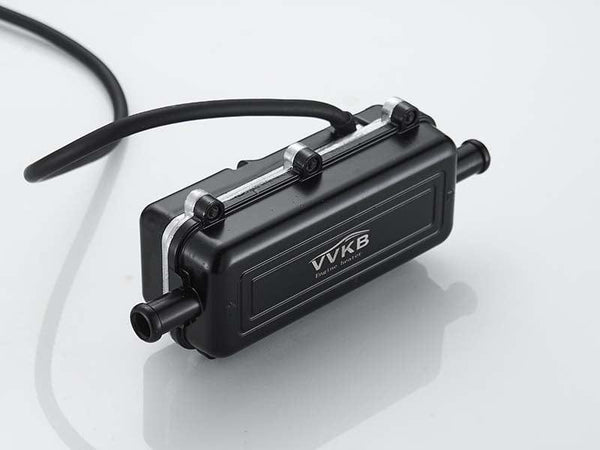

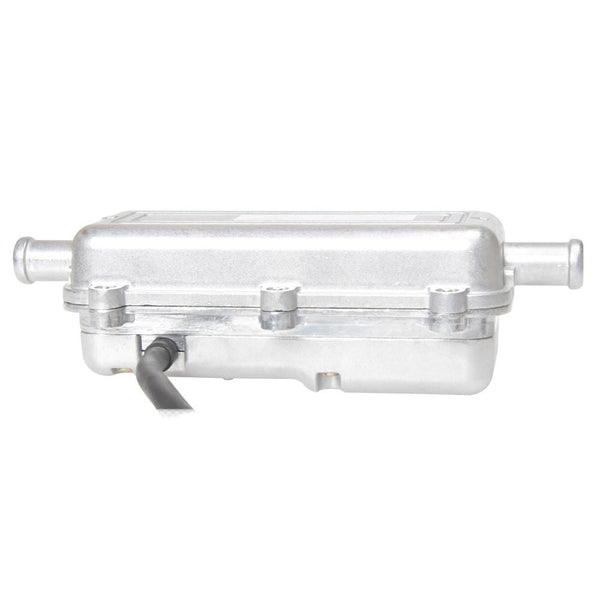

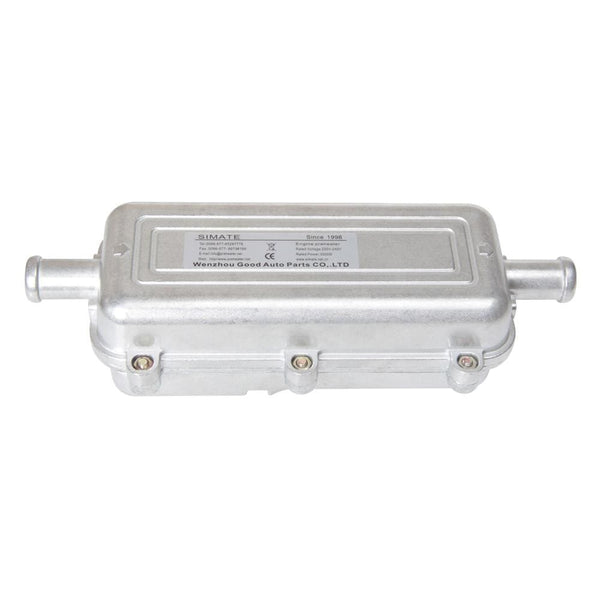

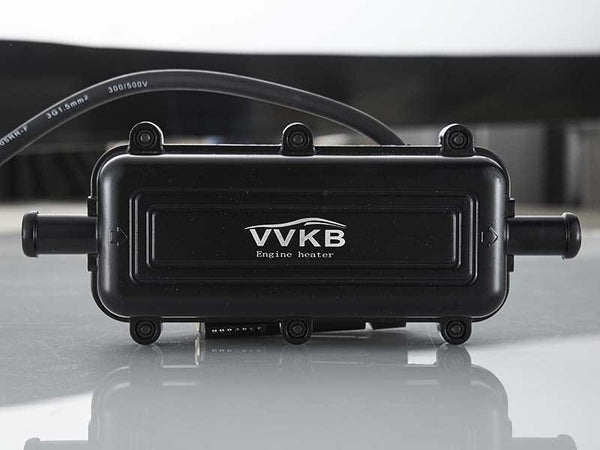

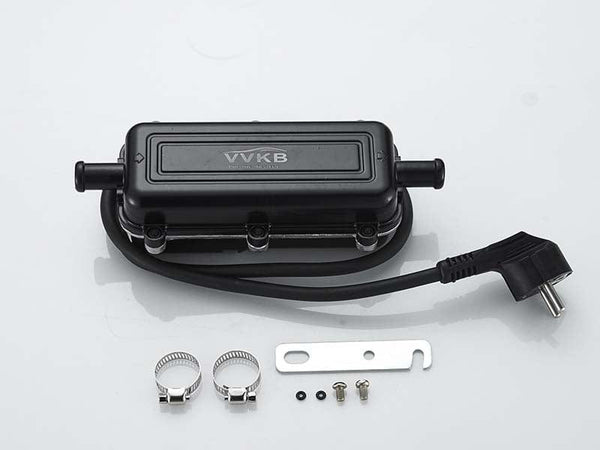

The video features the Titan-P4 with a silver casing; however, we updated the color of the Titan-P4 casing to black in 2019. Despite this change in appearance, the heater's specifications and performance remain largely unchanged.
Installation Position of Engine Heater Titan-P4
The Titan-P4 is mounted in exactly the same position as the Titan-P3 and can also be mounted in series or parallel.

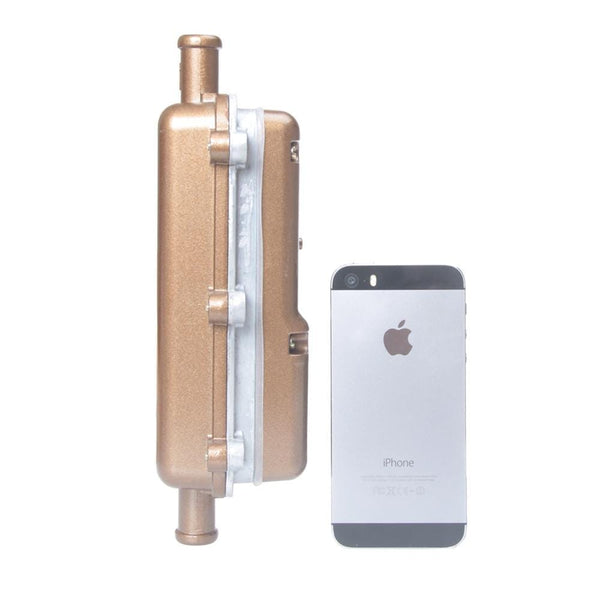

Titan-P4 External Dimensional
The engine block heater Titan-P4 is our largest sized engine heater with a maximum power of 2500W, it is perfect for larger vehicles.

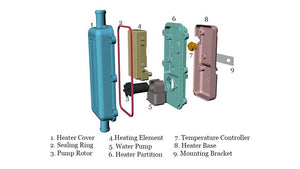

Vvkb Engine Heater Titan-P4 Structural Drawing
The structural diagram of the Vvkb engine block heater Titan-P4 provides a clear visual representation. Its design is very similar to that of the Titan-P3.
Vvkb Engine Block Heater Titan-P4 Inlet & Outlet Schematic
The 180-degree inlet and outlet design allows for a faster flow of coolant to heat the engine quickly.
