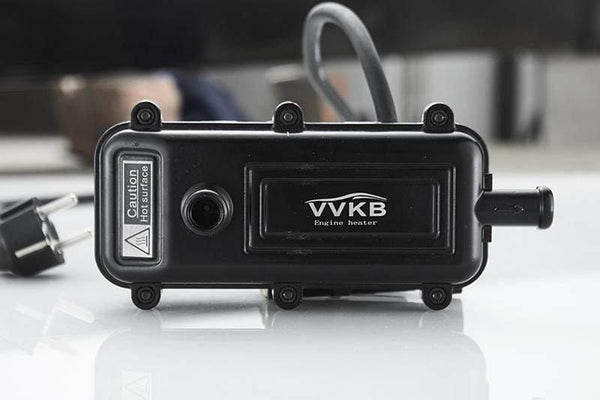

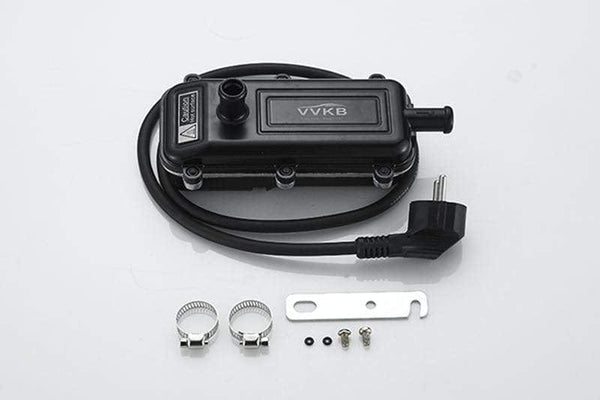

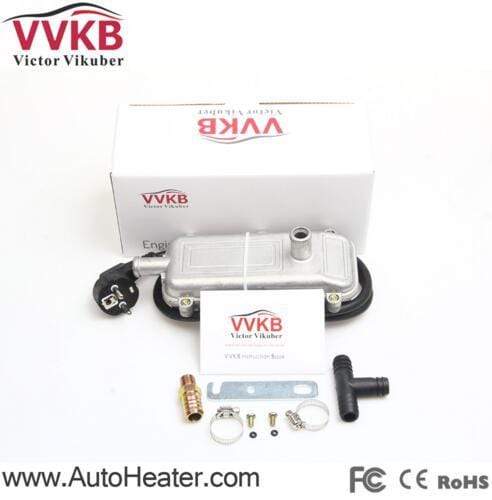

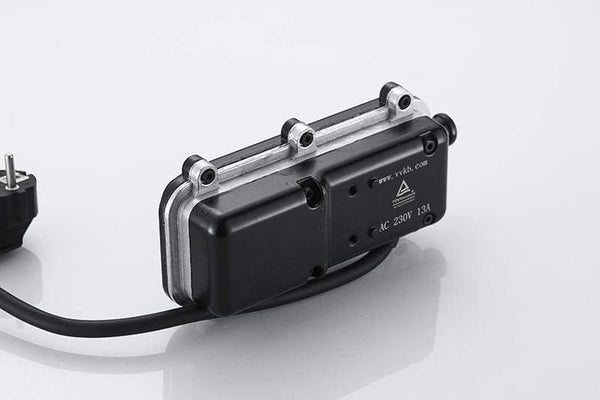

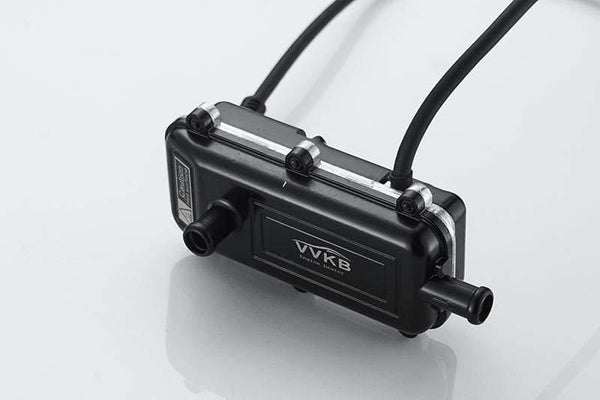

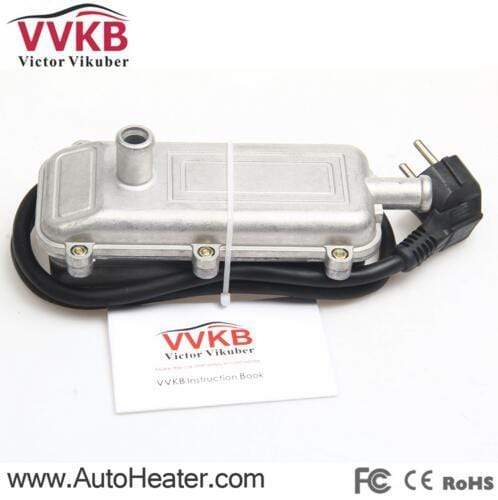

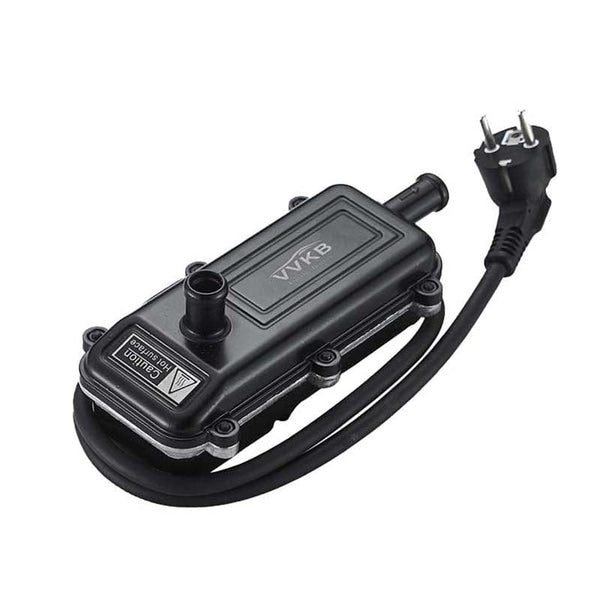

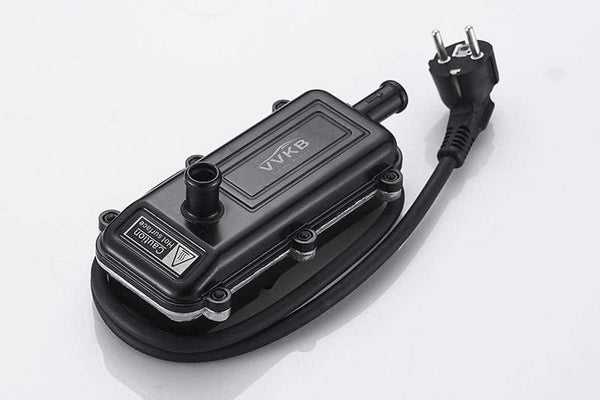

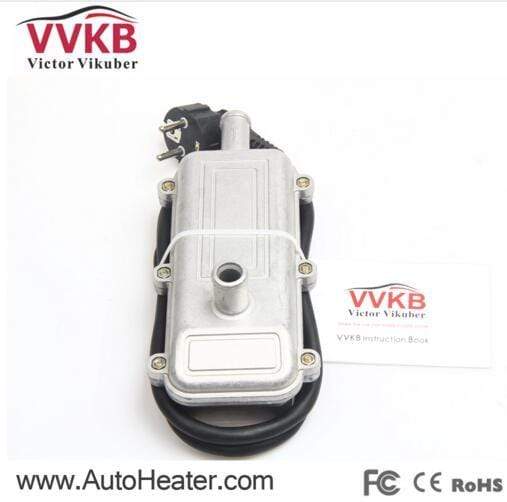

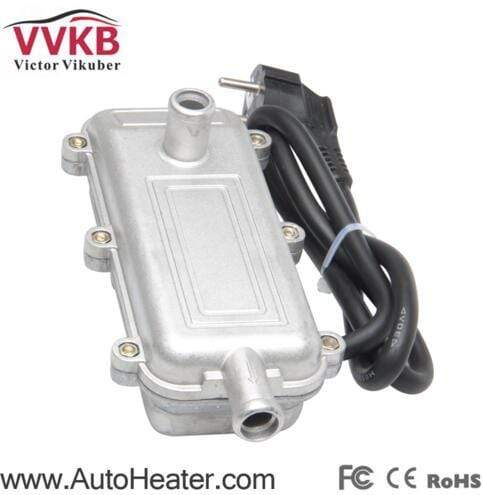

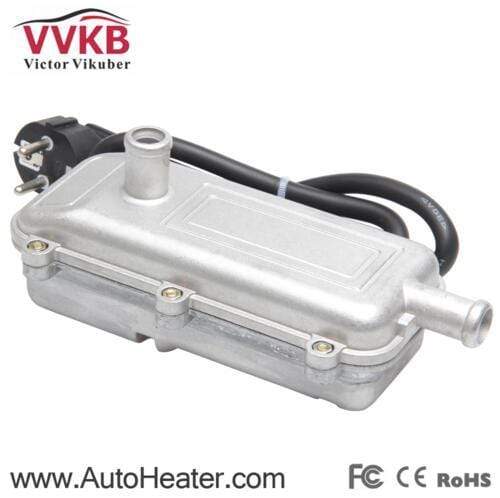

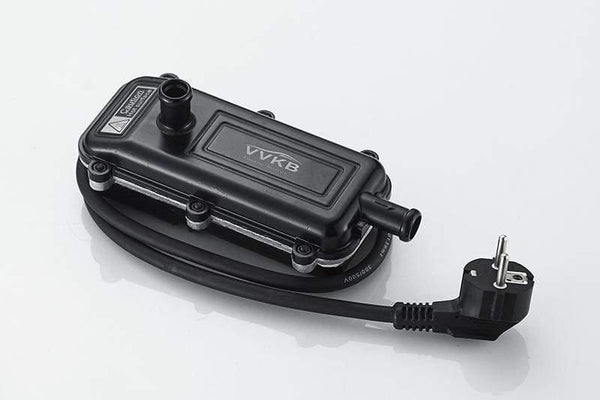

VVKB Hose Heater Titan-P3 110V/230V truck heater
36 in stock
DATA OF VVKB ENGINE BLOCK HEATER TITAN-P3
Rated Voltage | 110V/230V |
Rated Power | 1000W/1500W/2000W/2500W |
Rated Frequency | 60Hz/50Hz |
Weight | 2.6 lbs (1.2 kg) |
Dimension |
205mm X 83mm X 90mm (8.1” X 3.3” X 3.5”) |
Interface Diameter | 5/8" (16mm) |
With Built-in Pump | Yes |
Pump Type | Magnetic Pump |
Pump Life | 5000hr |
Pump Flow | 900L/Hr |
Built-in Thermostat | Two thermostats 45℃ - 65℃(113℉ - 149℉) |
Waterproof Rating | IP X4 |
Heating Tube Material and Process | Stainless steel, aluminum die-casting |
Heating Tube Life | 8000hr |
Shell Material | Aluminum alloy die-casting |
Shell Treatment Process | Plastic painting and laser engraving |
Certification | TUV, CE, RoHS, FCC |
Installation Method | Connected in series or parallel to coolant hoses |
Warranty | One year |
Benefits of Vvkb Engine Heater Titan-P3
Engine Heater Titan-P3 Introduction Video
This video shows the details of the Vvkb Engine Heater Titan-P3 to give you a better visualization of it.
Vvkb Engine Heater Titan-P3 3D Structural Drawing
This internal structure diagram clearly shows how our engine block heater differs from common products on the market. With built-in water pumps and temperature sensors, along with precise design and high-quality components, our heater ensures performance and reliability that exceed standard expectations.
Engine Heater Titan-P3 External Dimensional Drawing
The Vvkb Titan-P3 engine block heater has a larger size and a higher power rating, making it highly suitable for heating tractors, medium-sized trucks, construction machinery, and medium-sized generator sets.
Vvkb Heater Titan-P3 Installation Diagram
The Vvkb Titan-P3 heater offers two different connection methods. You can connect the Titan-P3 in parallel with an auxiliary heater as shown in our installation diagram, or you can connect it in series within the heating system's hoses.
Titan-P3 Heater Inlet & Outlet Schematic
Similarly, the inlet and outlet ports of the engine block heater Titan-P3 are very important, and this is one of the most important factors in ensuring that the heater works properly.
